Specifications

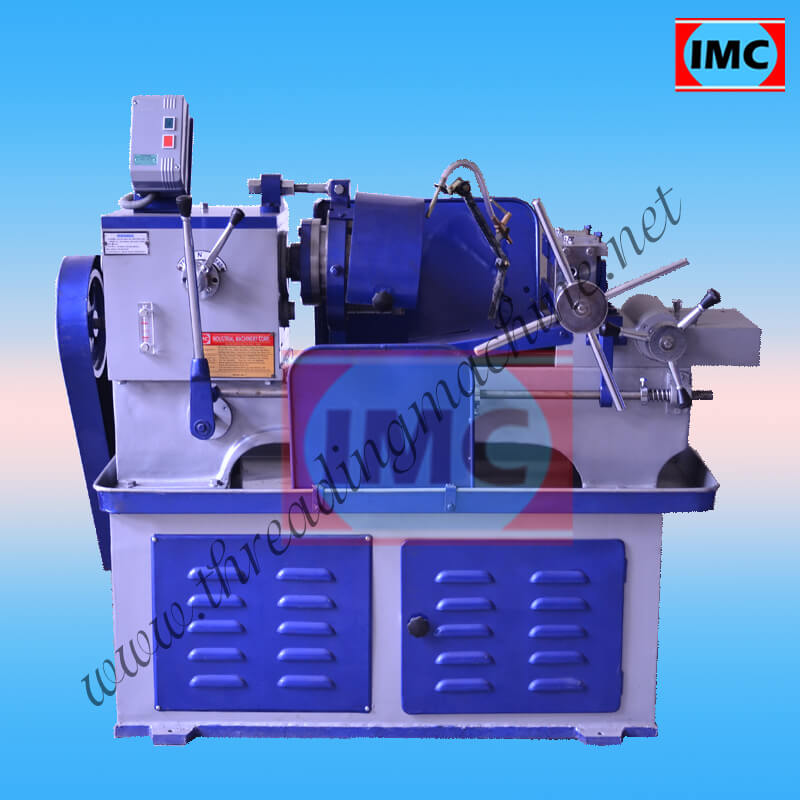

Looking for a reliable Bolt Threading Machine? Look no further than IMC, a leading manufacturer and supplier of high-quality machinery. Our Bolt Thread Cutting Machines are designed to deliver exceptional performance and precision, making them an essential tool for creating external threads on bolts.

The Bolt Thread Cutting Machine utilizes the chasing method to execute the threading process. HSS Bolt Threading Tangential Chasers, acting as cutters, create super-fine threads while the job remains stationary and the die head rotates. This efficient mechanism ensures accurate and consistent threading results.

Our Bolt Threading Machine offers versatility, allowing users to create a wide range of thread types, including BSP, MATRIX, BSPT, NPT, UNF, UNC, BSW, and Acme Threads. The thread type depends on the chasers used, providing flexibility for various applications.

The machine's components are carefully crafted to ensure durability and optimal performance. It consists of:

Base: The sturdy base provides stability and support to the machine during operation, ensuring precise threading.

Head Stock: The head stock houses the motor and controls the rotational movement of the die head. It enables smooth and controlled threading operations.

Saddle: The saddle holds the job securely in place while the threading process takes place. It ensures stability and accuracy during the threading operation.

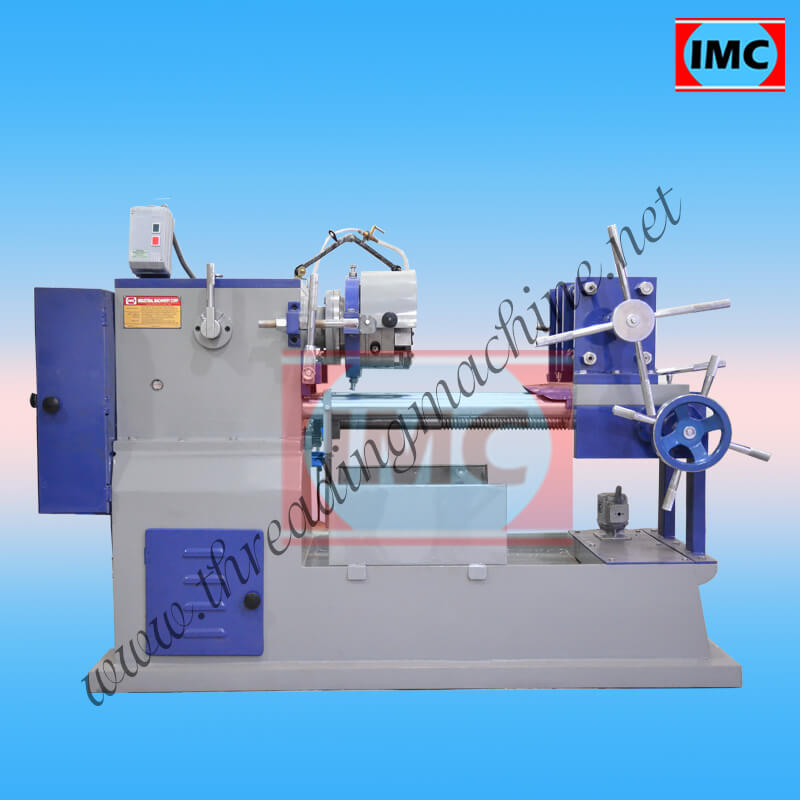

Bed or Pillar Type Clamping Vice: The bed or pillar type clamping vice securely holds the bolt in position, preventing any movement and ensuring precise threading.

Die-Head: The die-head is a crucial component that holds the chasers. It rotates and engages with the bolt to create the desired threads. The die-head's design allows for quick and easy chaser replacement, optimizing productivity.

IMC's Bolt Threading Machine is manufactured with precision engineering and strict quality control measures, ensuring superior durability and reliability. With our machine, you can streamline your bolt threading operations and achieve excellent threading results consistently.

As a trusted manufacturer and supplier, IMC is dedicated to providing comprehensive support to our customers. From installation and training to ongoing maintenance and technical assistance, our team of experts is here to ensure a seamless experience and maximize the potential of your Bolt Threading Machine.

Choose IMC for a reliable and efficient Bolt Thread Cutting Machine that meets your threading needs. Trust in our expertise, quality, and commitment to customer satisfaction. Elevate your bolt thread cutting operations with IMC as your trusted partner.

Range of IMC Bolt Thread Cutting Die Heads.

Diameter  1/4" to 1"  do/-
Diameter 3/8" to 1.1/2"  do/-
Diameter 1/2" to 2.1/2" do/-
Diameter 1" to 4" do/-

Bolt Threading Machine Specification :
