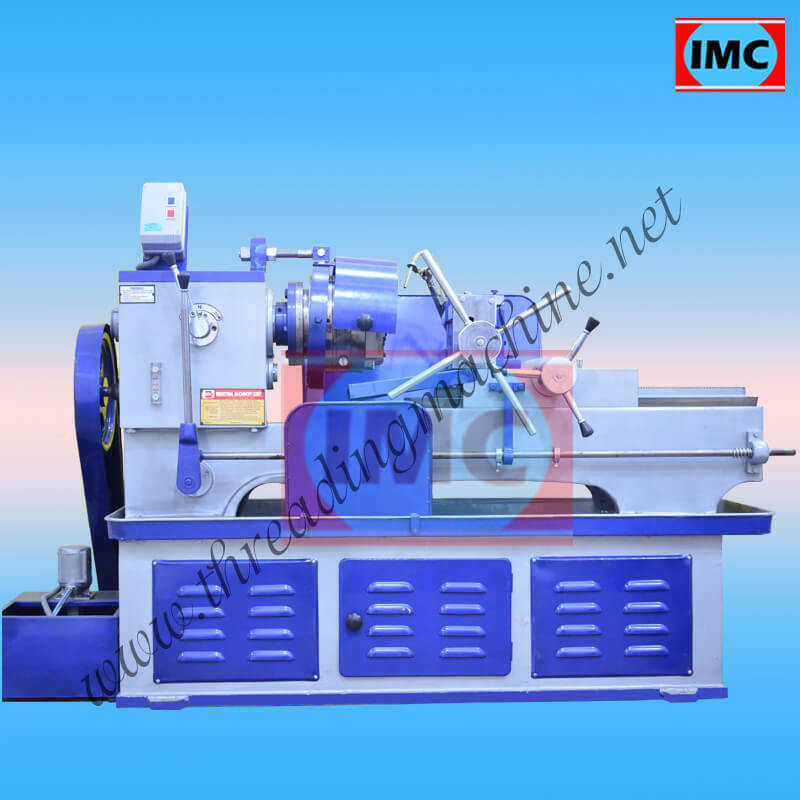

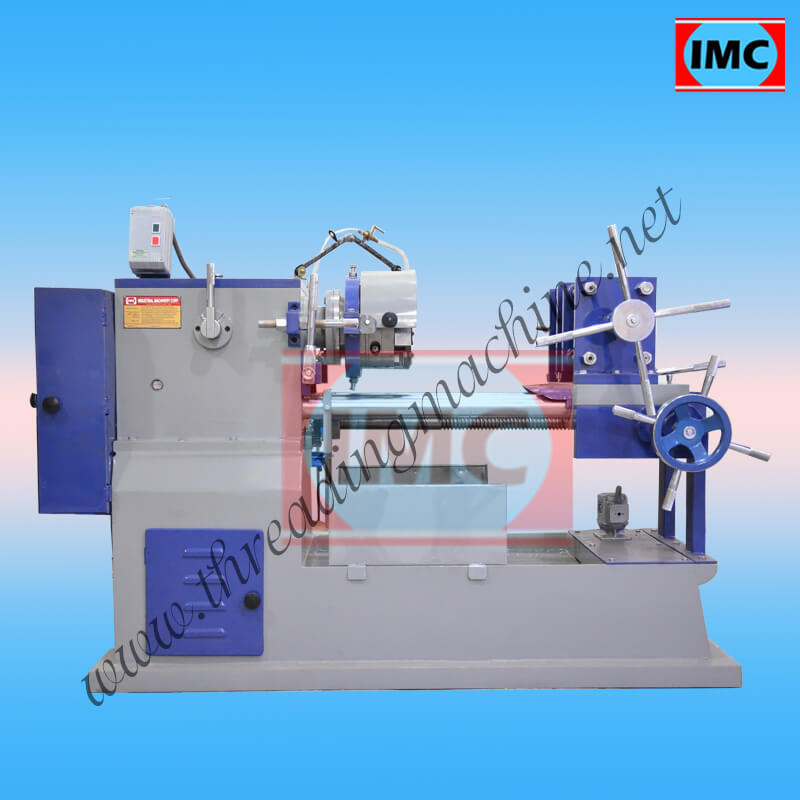

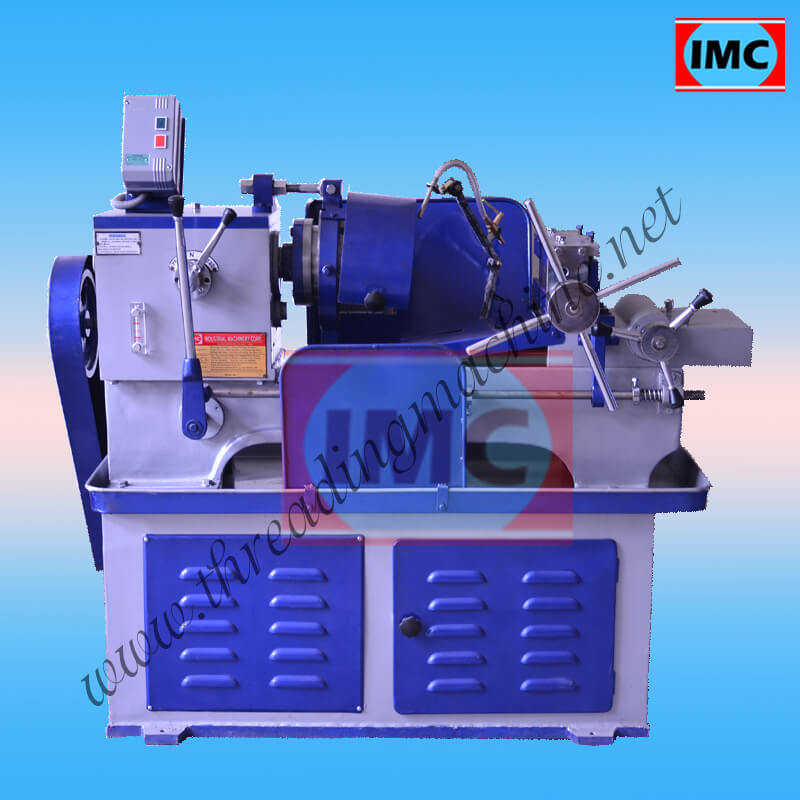

Effortless Pipe Threading with a High-Quality Pipe Threading Machine

IMC (Industrial Machinery Corporation) is a well-known manufacturer and supplier of industrial machines, including pipe threading machines. IMC offers a range of pipe threading machines that are designed to cut external threads on pipes accurately and efficiently. IMC's pipe threading machines are widely used in industries such as plumbing, construction, and manufacturing.

VIEW SPECIFICATIONS

Available Options

Thread Type

Thread Length Require

Diameter of the job

Purchase

Expected Price

Specifications

<div>

A pipe threading machine is a specialized tool used to cut external threads on pipes using chasers as cutters. The machine consists of several components that work together to perform the threading operation. Here is a brief description of the components you mentioned:

Base: The base provides stability and support to the entire machine. It is typically made of a sturdy material to ensure stability during the threading process.

Head Stock: The headstock is responsible for rotating the die head, which holds the chasers. It provides the necessary power and motion to cut the threads on the pipe.

Saddle: The saddle is a movable component that supports and guides the pipe during threading. It allows for smooth and controlled movement of the pipe while the threads are being cut.

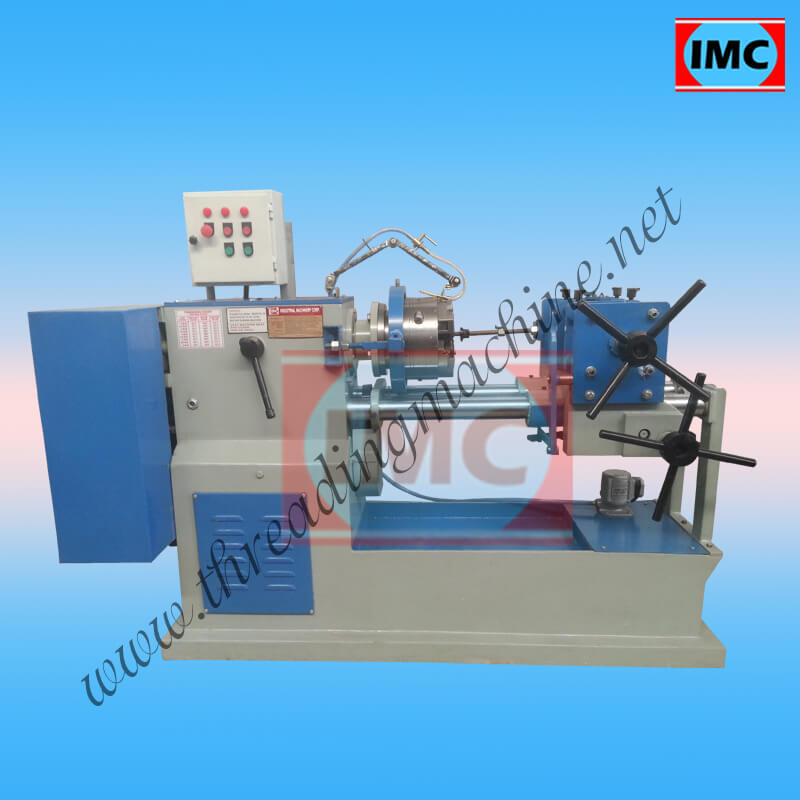

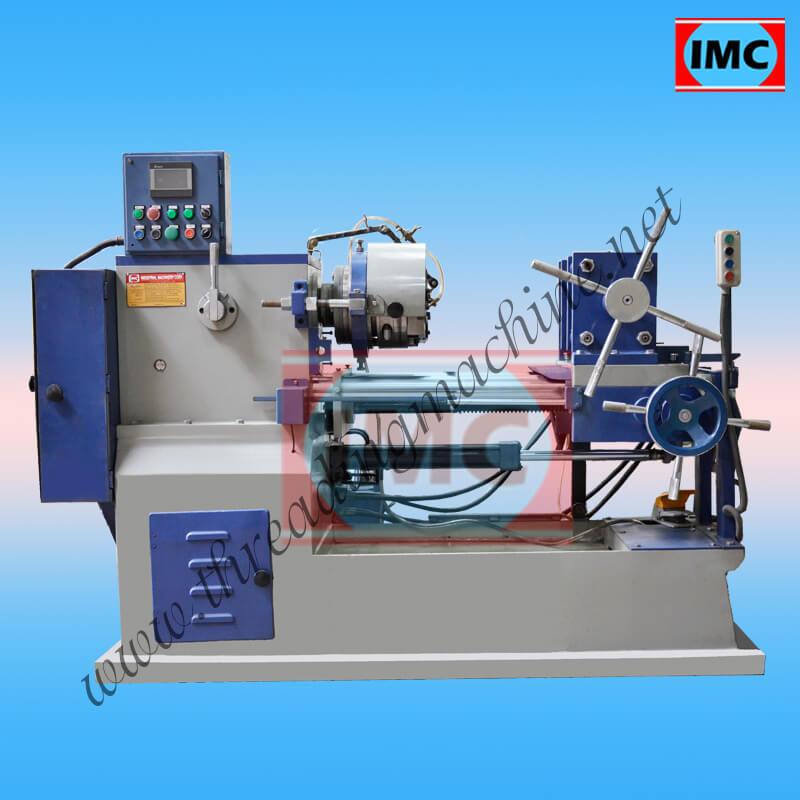

Bed or Pillar Type Clamping Vice: This component is used to secure and clamp the pipe in place during the threading process. It ensures that the pipe remains steady and prevents any movement or rotation while the threads are being cut.

Die Head: The die head holds the chasers, which are used as cutting tools to create the external threads on the pipe. The die head is rotated by the headstock, and it advances along the length of the pipe as the threads are being cut.

The pipe threading machine is capable of cutting various types of threads, such as parallel and taper threads, including standards like BSPT (British Standard Pipe Taper), BSW (British Standard Whitworth), BSP (British Standard Pipe), NPT (National Pipe Taper), UNF (Unified National Fine), METRIC, UNC (Unified National Coarse), ACME, and BSF (British Standard Fine) threads. The appropriate chasers are selected and mounted on the die head to match the desired thread specifications.

It's important to note that specific features and specifications can vary based on the model of the IMC pipe threading machine. Therefore, it's recommended to visit the official IMC website or contact their customer support for detailed information about their specific models, including technical specifications, pricing, and availability. .

Range of IMC Die Heads.

1/4" to 1" capacity

3/8" to 1.1/2" capacity

1/2" to 2.1/2" capacity

1" to 4" capacity

2.1/2" to 6" capacity

4" to 8" capacity

Pipe Threading Machine Specifications:

Model	3/8" to 2" (10MM to 50MM)	1/2"to 2.1/2" (12MM to 65MM)	1" to 4" (25MM to 100MM)	2.1/2" to 6" (65MM to 150MM)	4" to 8" (100MM to 200MM)	8"to 10" (200MM to 250MM)
Saddle Movement	10" - 12"	16"	10“ 12"	8"	8"	8"
Spindle Speed Range	127-180	60-90-120	40-75-115	25-50	25-50	10-20-30
Number of Spindle Speed	2	3	3	2	2	3
Threading Capacity	3/8" to 2"	1/2" to 3"	1" to 4"	2.1/2" to 6"	4" to 8"	8" to 10"
Production per Hour	100-120	70-90	35-40	20-25	15-20	15-20
H.P. Required	3 H.P.	7.5 H.P.	12.5 H.P. 960	15 H.P. 960	20 H.P. 960	30 H.P. 960
Lead Screw	Provided	Provided	Provided	Provided	Provided	Provided
Weight (KG) Approx.	550	990	1600	1900	2500	5000
